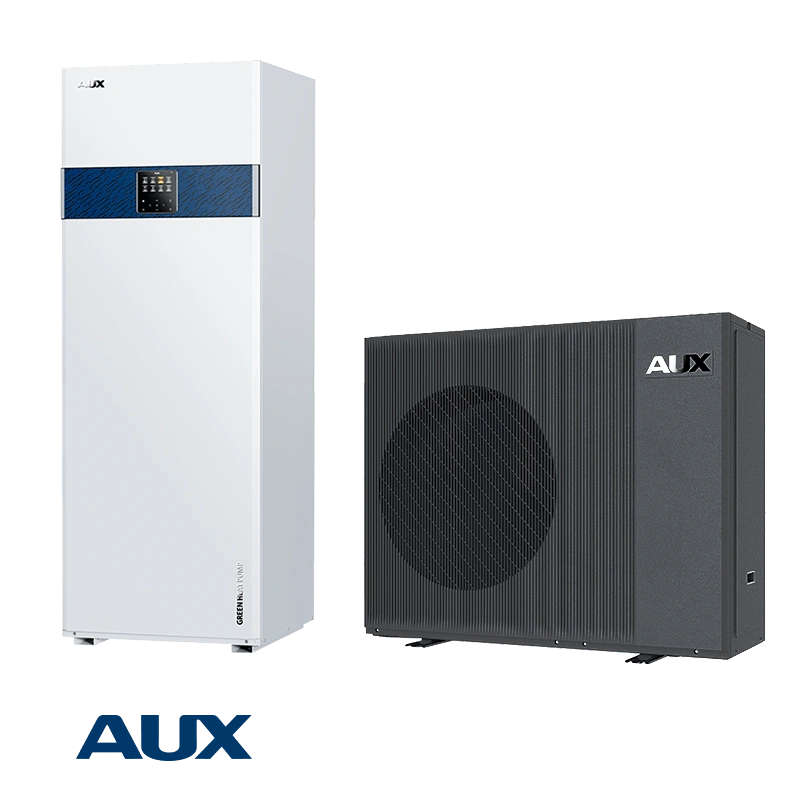

All-in-one teat pump R290 AUX ACHA-H/4R2EA19 / AC-H10/4R2EA(HA)

Technical information

• Basic
• Wi-Fi:

  Yes

• Cooling capacity (Min./Nom./Max):

  - / 11 / - kW

• Heating capacity (Min./Nom./Max):

  - / 2.18 / - kW

• Consumption power - cooling (Min./Nom./Max):

  - / 10 / - kW

• Consumption power - heating (Min./Nom./Max):

  - / 3.15 / - kW

• Nominal efficiency EER cooling:

  3.49

• COP:

  4.59

• SCOP:

  5.15

• Energy label (Cooling / Heating) - Average climate:

  A+++ / A+++

• Operation Range (Cooling):

  -5 ~ 43 °C

• Operation Range (Heating):

  -25 ~ 43 °C

• Circulating water temperature (cooling):

  5 ~ 25 °C

• Circulating water temperature (heating):

  25 ~ 80 °C

• Capacity of the built-in water tank:

  190 l

• Warranty:

  36 months

• Refrigerant:

  R290

• Power supply (Phase/Frequency/Voltage):

  1~/50/220-240

• Indoor unit
• Dimensions:

  1795 x 600 x 600 H x W x L (mm)

• Weight:

  129 kg

• Sound Pressure - cooling (High/Nom./Low/Silent):

  53 / - / - / 42 dB (A)

• Sound Pressure - heating (High/Nom./Low/Silent):

  52 / - / - / 43 dB (A)

• Outdoor unit
• Compressor type:

  DC Twin Rotary

• Dimensions:

  1040 x 1280 x 420 H x W x L (mm)

• Weight:

  126 kg

• Sound Pressure - cooling (High/Nom./Low/Silent):

  53 / - / - / - dB (A)

• Sound Pressure - heating (High/Nom./Low/Silent):

  54 / - / - / - dB (A)

• Shipping package - HEAT PUMP AC-H10/4R2EA(HA)/R290 ALL IN ONE ВЪНШ.
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  121 x 55 x 136; Weight: 156 kg.;

• Shipping package - HEAT PUMP AUX ACHA-H/4R2EA19 TANK ALL IN ONE ВЪТР.
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  195 x 69 x 70; Weight: 143 kg.;
