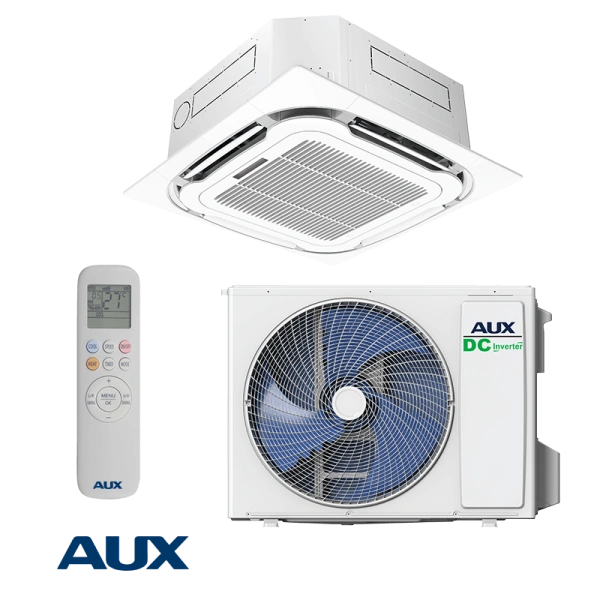

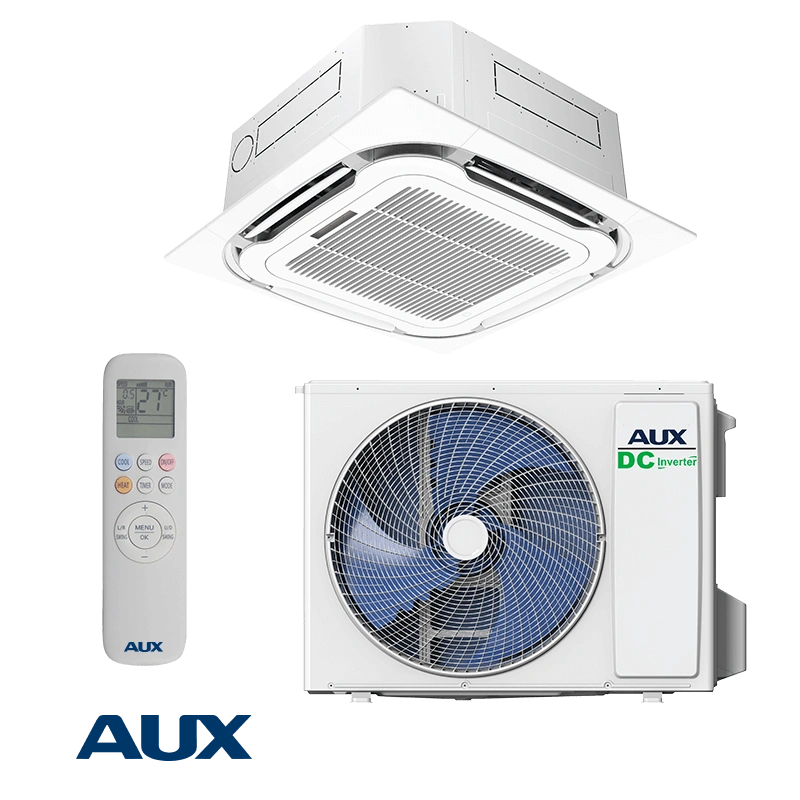

Cassette Air conditioner AUX AUCA-H24/4DR3HYAA + AL-H24/NDR3HB2(U)

1559.46 EUR (VAT incl.)

Documents

Service documentation
  • Aux error codes_Сплит Download
  • AUX error codes-Професионални Download
  • AUX error codes-Термопомпи Download

Technical information

  • Basic
  • Cooling capacity (Min./Nom./Max):

    2.16 / 7.0 / 8.2 kW

  • Heating capacity (Min./Nom./Max):

    1.98 / 8.0 / 9.3 kW

  • Consumption power - cooling (Min./Nom./Max):

    0.67 / 2.1 / 3.3 kW

  • Consumption power - heating (Min./Nom./Max):

    0.65 / 2.13 / 3.3 kW

  • Capacity (BTU):

    24 000 BTU

  • Nominal efficiency EER cooling:

    3.35

  • Seasonal efficiency SEER cooling:

    6.1

  • COP:

    3.71

  • SCOP:

    4

  • Operation Range (Cooling):

    -15 ~ 52 °C

  • Operation Range (Heating):

    -15 ~ 24 °C

  • Suitable for rooms up to:

    49 square meters

  • Warranty:

    36 months

  • Refrigerant:

    R-32

  • Power supply (Phase/Frequency/Voltage):

    1~/50/220-240

  • Indoor unit
  • Dimensions:

    246 x 840 x 840 H x W x L (mm)

  • Weight:

    26 kg

  • Sound Pressure - cooling (High/Nom./Low/Silent):

    46 / 45 / 43 / - dB

  • Sound Pressure - heating (High/Nom./Low/Silent):

    46 / 45 / 43 / - dB

  • Outdoor unit
  • Dimensions:

    700 x 900 x 350 H x W x L (mm)

  • Weight:

    43 kg

  • Refrigerant piping - Liquid / Gas:

    9.52 / 15.9 mm (3/8" / 5/8") mm / inch

  • Sound Pressure - cooling (High/Nom./Low/Silent):

    58 / - / - / - dB

  • Sound Pressure - heating (High/Nom./Low/Silent):

    58 / - / - / - dB

  • Shipping package - AUX AUCA-H24/4DR3HYAA - КАСЕТА ВЪТР.
  • Packages quantity:

    1 pc.

  • Package dimensions (HxWxD cm):

    31 x 91 x 91; Weight: 26 kg.;

  • Shipping package - AUX MB08 24-60 ALCA/AUCA PANEL
  • Packages quantity:

    0 pc.

  • Shipping package - AUX AL-H24/NDR3HB2(U) - ВЪНШ. ТЯЛО
  • Packages quantity:

    1 pc.

  • Package dimensions (HxWxD cm):

    77 x 43 x 102; Weight: 48 kg.;
