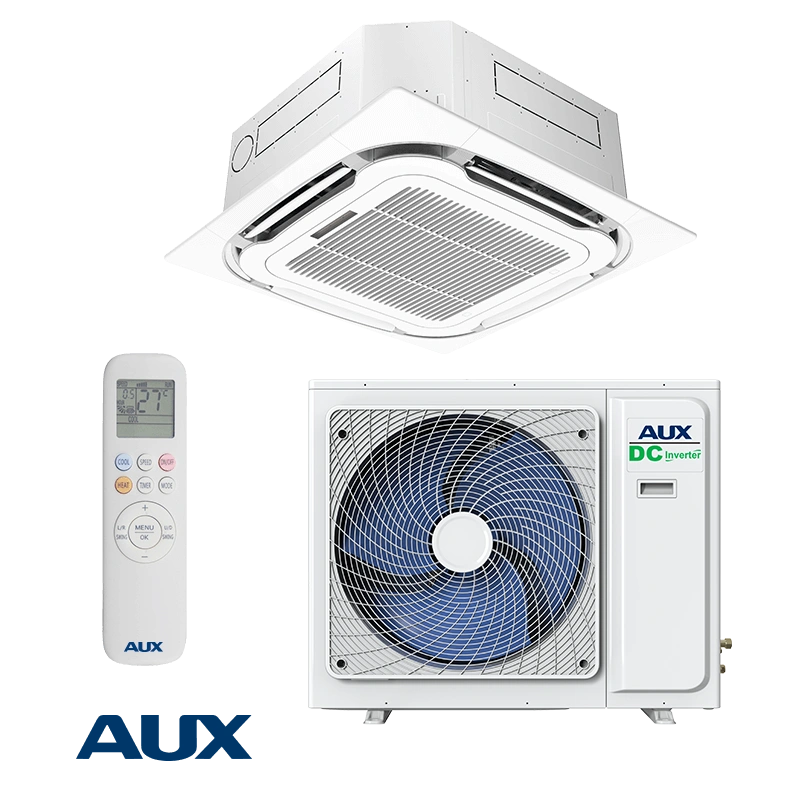

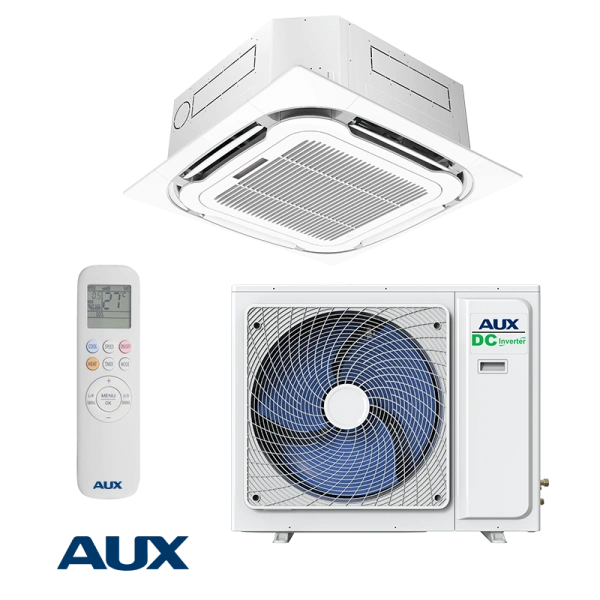

Cassette Air conditioner AUX AUCA-H36/NDR3HYCA + AL-H36/NDR3C2(U)

Technical information

• Basic
• Cooling capacity (Min./Nom./Max):

  2.47 / 10.55 / 12 kW

• Heating capacity (Min./Nom./Max):

  1.61 / 11.15 / 12.38 kW

• Consumption power - cooling (Min./Nom./Max):

  0.23 / 3.1 / 3.63 kW

• Consumption power - heating (Min./Nom./Max):

  0.29 / 2.8 / 3.11 kW

• Capacity (BTU):

  36 000 BTU

• Nominal efficiency EER cooling:

  3.4

• Seasonal efficiency SEER cooling:

  6.1

• COP:

  3.98

• SCOP:

  4

• Operation Range (Cooling):

  -15 ~ 52 °C

• Operation Range (Heating):

  -15 ~ 24 °C

• Suitable for rooms up to:

  65 square meters

• Warranty:

  36 months

• Refrigerant:

  R-32

• Power supply (Phase/Frequency/Voltage):

  1~/50/220-240

• Indoor unit
• Dimensions:

  288 x 840 x 840 H x W x L (mm)

• Weight:

  29.5 kg

• Sound Pressure - cooling (High/Nom./Low/Silent):

  52 / 50 / 48 / - dB (A)

• Sound Pressure - heating (High/Nom./Low/Silent):

  52 / 50 / 48 / - dB (A)

• Outdoor unit
• Dimensions:

  803 x 970 x 360 H x W x L (mm)

• Weight:

  61.5 kg

• Refrigerant piping - Liquid / Gas:

  9.52 / 15.9 mm (3/8" / 5/8") mm / inch

• Sound Pressure - cooling (High/Nom./Low/Silent):

  59 / - / - / - dB (A)

• Sound Pressure - heating (High/Nom./Low/Silent):

  59 / - / - / - dB (A)

• Shipping package - AUX AUCA-H36/NDR3HYCA ВЪТР. КАСЕТА (MB08)
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  35 x 91 x 91; Weight: 34 kg.;

• Shipping package - AUX MB08 24-60 ALCA/AUCA PANEL
• Packages quantity:

  0 pc.

• Shipping package - AUX AL-H36/* ВЪНШ. ТЯЛО
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  145 x 43 x 108; Weight: 66 kg.;
