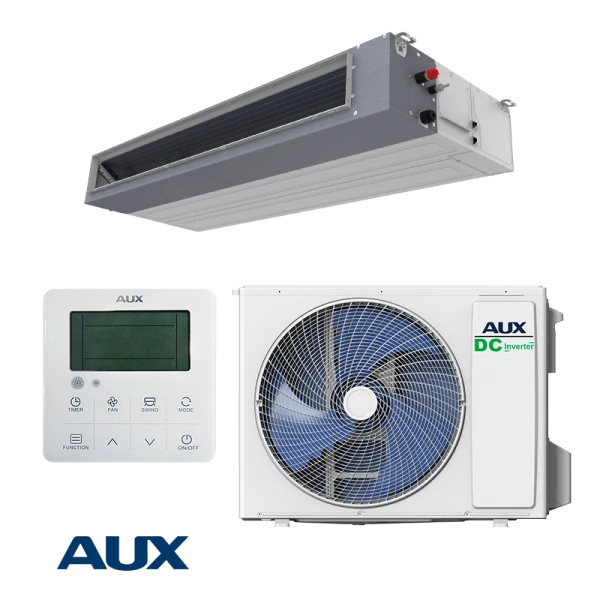

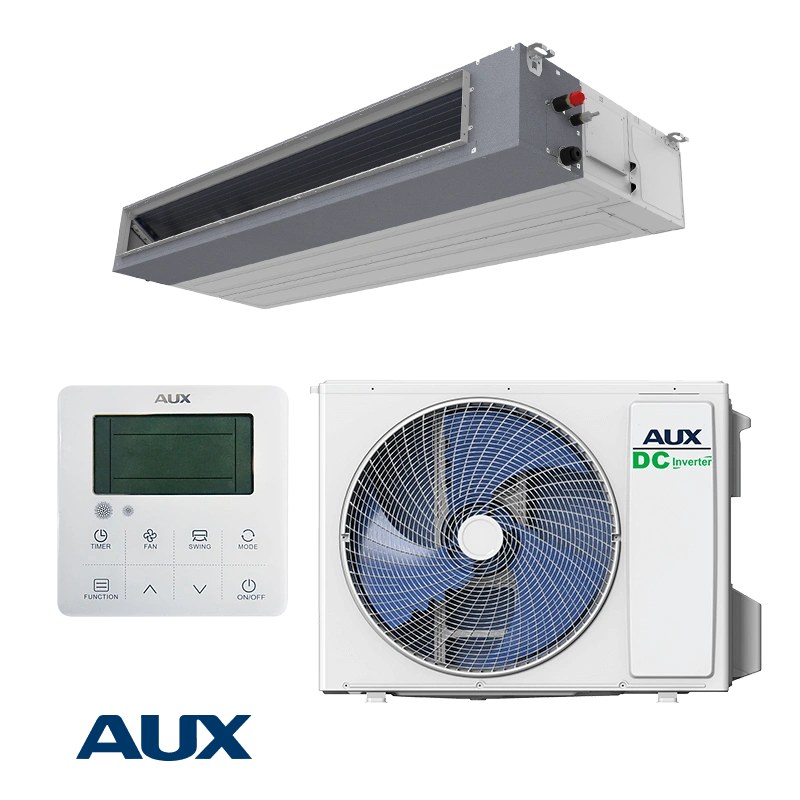

Duct Air conditioner AUX AUMD-H24/NDR3HM2B + AL-H24/NDR3HB2(U)

Technical information

• Basic
• Cooling capacity (Min./Nom./Max):

  2.16 / 7.03 / 8.2 kW

• Heating capacity (Min./Nom./Max):

  1.98 / 7.91 / 9.3 kW

• Consumption power - cooling (Min./Nom./Max):

  0.67 / 2.17 / 3.3 kW

• Consumption power - heating (Min./Nom./Max):

  0.65 / 2.13 / 3.3 kW

• Capacity (BTU):

  24 000 BTU

• Nominal efficiency EER cooling:

  3.24

• Seasonal efficiency SEER cooling:

  6.1

• COP:

  3.71

• SCOP:

  4

• Operation Range (Cooling):

  -15 ~ 52 °C

• Operation Range (Heating):

  -15 ~ 24 °C

• Suitable for rooms up to:

  45 square meters

• Warranty:

  36 months

• Refrigerant:

  R-32

• Power supply (Phase/Frequency/Voltage):

  1~/50/220-240

• Indoor unit
• Dimensions:

  700 x 1000 x 245 H x W x L (mm)

• Weight:

  32 kg

• Sound Pressure - cooling (High/Nom./Low/Silent):

  43 / 41 / 39 / - dB (A)

• Sound Pressure - heating (High/Nom./Low/Silent):

  43 / 41 / 39 / - dB (A)

• Outdoor unit
• Dimensions:

  700 x 900 x 360 H x W x L (mm)

• Weight:

  40.5 kg

• Refrigerant piping - Liquid / Gas:

  9.52 / 15.9 mm (3/8" / 5/8") mm / inch

• Sound Pressure - cooling (High/Nom./Low/Silent):

  58 / - / - / - dB (A)

• Sound Pressure - heating (High/Nom./Low/Silent):

  58 / - / - / - dB (A)

• Shipping package - AUX AUMD-H24/NDR3HM2B-ВЪТР. КАНАЛ
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  30 x 83 x 163; Weight: 45 kg.;

• Shipping package - AUX AL-H24/* ВЪНШ. ТЯЛО
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  77 x 43 x 102; Weight: 48 kg.;
