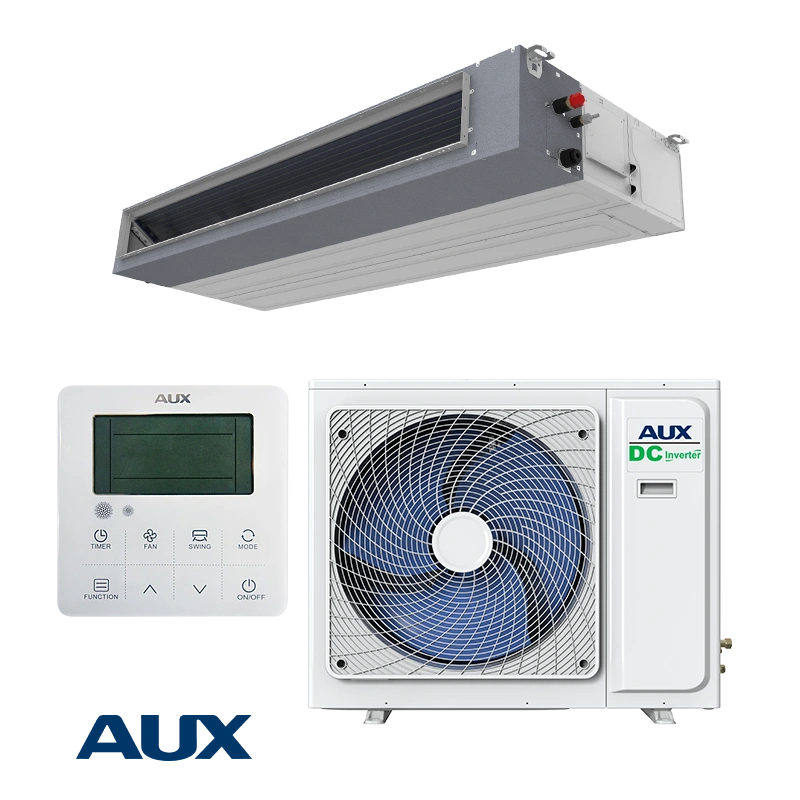

Duct Air conditioner AUX AUMD-H36/NDR3HC + AL-H36/NDR3C2(U)

Technical information

• Basic
• Cooling capacity (Min./Nom./Max):

  2.58 / 10.55 / 11.26 kW

• Heating capacity (Min./Nom./Max):

  2.04 / 11.15 / 11.86 kW

• Consumption power - cooling (Min./Nom./Max):

  0.3 / 3.6 / 3.77 kW

• Consumption power - heating (Min./Nom./Max):

  0.38 / 3.0 / 3.11 kW

• Capacity (BTU):

  36 000 BTU

• Nominal efficiency EER cooling:

  2.93

• Seasonal efficiency SEER cooling:

  6.1

• COP:

  3.72

• SCOP:

  4

• Operation Range (Cooling):

  -15 ~ 52 °C

• Operation Range (Heating):

  -15 ~ 24 °C

• Indoor unit
• Dimensions:

  700 x 1400 x 245 H x W x L (mm)

• Weight:

  38 kg

• Sound Pressure - cooling (High/Nom./Low/Silent):

  44 / 41 / 39 / - dB (A)

• Sound Pressure - heating (High/Nom./Low/Silent):

  44 / 41 / 39 / - dB (A)

• Outdoor unit
• Dimensions:

  805 x 970 x 395 H x W x L (mm)

• Weight:

  61 kg

• Refrigerant piping - Liquid / Gas:

  9.52 / 15.9 mm (3/8" / 5/8") mm / inch

• Sound Pressure - cooling (High/Nom./Low/Silent):

  59 / - / - / - dB (A)

• Sound Pressure - heating (High/Nom./Low/Silent):

  59 / - / - / - dB (A)

• Shipping package - AUX AUMD-H36/NDR3HC-ВЪТР. КАНАЛ
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  30 x 83 x 163; Weight: 45 kg.;

• Shipping package - AUX AL-H36/* ВЪНШ. ТЯЛО
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  145 x 43 x 108; Weight: 66 kg.;
