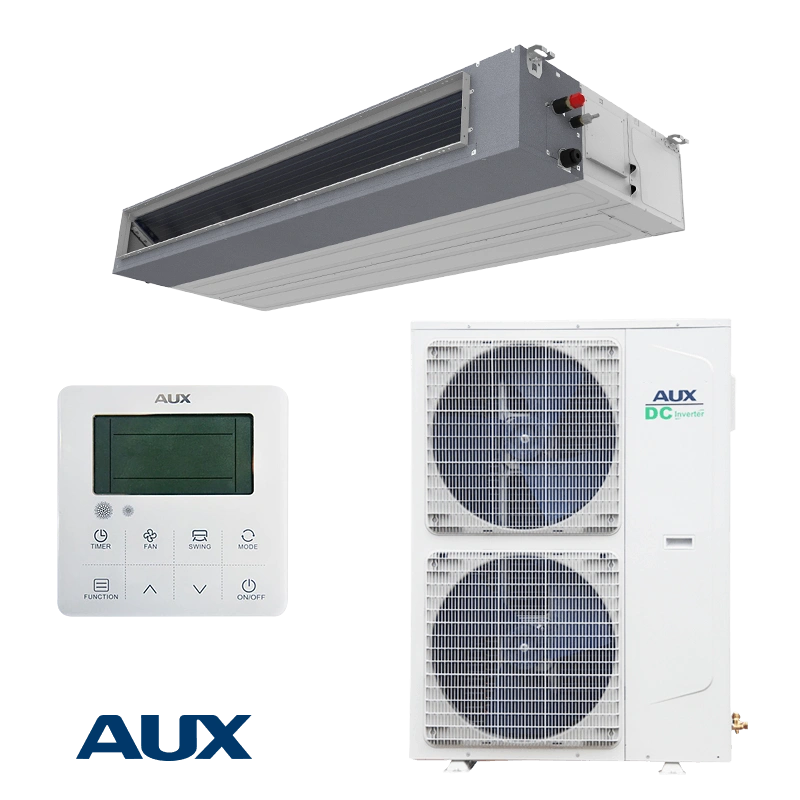

Duct Air conditioner AUX AUMD-H60/SDR3HC + AL-H60/SDR3C2(U)

Technical information

• Basic
• Cooling capacity (Min./Nom./Max):

  4.76 / 16.0 / 17.5 kW

• Heating capacity (Min./Nom./Max):

  4.78 / 17.0 / 18.5 kW

• Consumption power - cooling (Min./Nom./Max):

  1.71 / 5.6 / 6.85 kW

• Consumption power - heating (Min./Nom./Max):

  1.71 / 4.8 / 7.0 kW

• Nominal efficiency EER cooling:

  2.86

• COP:

  3.54

• Operation Range (Cooling):

  -15 ~ 52 °C

• Operation Range (Heating):

  -15 ~ 24 °C

• Suitable for rooms up to:

  100 square meters

• Warranty:

  36 months

• Refrigerant:

  R-32

• Power supply (Phase/Frequency/Voltage):

  1~/50/220-240

• Indoor unit
• Dimensions:

  700 x 1400 x 245 H x W x L (mm)

• Weight:

  38 kg

• Sound Pressure - cooling (High/Nom./Low/Silent):

  52 / 47 / 45 / - dB

• Sound Pressure - heating (High/Nom./Low/Silent):

  52 / 47 / 45 / - dB

• Outdoor unit
• Dimensions:

  1325 x 940 x 370 H x W x L (mm)

• Weight:

  85 kg

• Refrigerant piping - Liquid / Gas:

  9.52 / 15.9 mm (3/8" / 5/8") mm / inch

• Sound Pressure - cooling (High/Nom./Low/Silent):

  60 / - / - / - dB

• Sound Pressure - heating (High/Nom./Low/Silent):

  60 / - / - / - dB

• Shipping package - AUX AUMD-H60/SDR3HC-ВЪТР. КАНАЛ
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  30 x 83 x 163; Weight: 45 kg.;

• Shipping package - AUX AL-H60/SDR3C2(U) ВЪНШ. ТЯЛО
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  145 x 43 x 108; Weight: 95 kg.;
