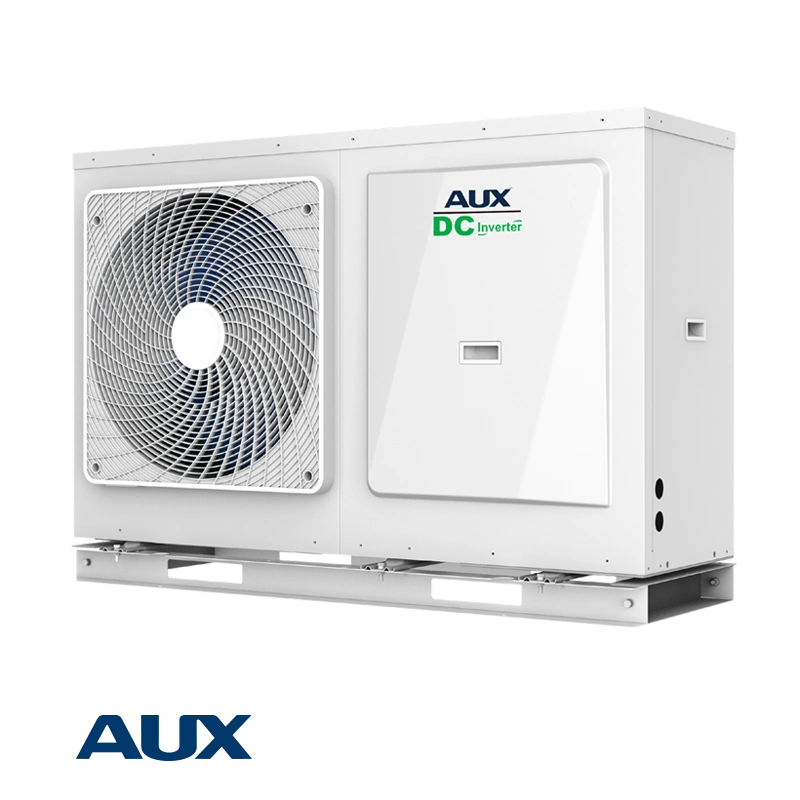

Heat pump monobloc AUX ACHP-H16/5R3HA-M - 3-phase

Technical information

• Basic
• Cooling capacity (Min./Nom./Max):

  - / 14 / - kW

• Heating capacity (Min./Nom./Max):

  - / 16.1 / - kW

• Consumption power - cooling (Min./Nom./Max):

  - / 5.7 / - kW

• Consumption power - heating (Min./Nom./Max):

  - / 3.57 / - kW

• Nominal efficiency EER cooling:

  2.46

• COP:

  4.51

• Energy label (Cooling / Heating) - Average climate:

  - / A+++

• Operation Range (Cooling):

  -5 ~ 52 °C

• Operation Range (Heating):

  -25 ~ 35 °C

• Circulating water temperature (cooling):

  5 ~ 25 °C

• Circulating water temperature (heating):

  12 ~ 65 °C

• Warranty:

  36 months

• Refrigerant:

  R-32

• Power supply (Phase/Frequency/Voltage):

  3~/50/380-415

• Indoor unit
• Outdoor unit
• Dimensions:

  933 x 1385 x 520 H x W x L (mm)

• Weight:

  140 kg

• Sound Pressure - cooling (High/Nom./Low/Silent):

  - / 55 / - / - dB (A)

• Sound Pressure - heating (High/Nom./Low/Silent):

  - / 55 / - / - dB (A)

• Shipping package - HEAT PUMP AUX ACHP-H16/5R3HA-M/R32 МОНОБЛОК 380V
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  93.3 x 138.5 x 52; Weight: 151 kg.;
