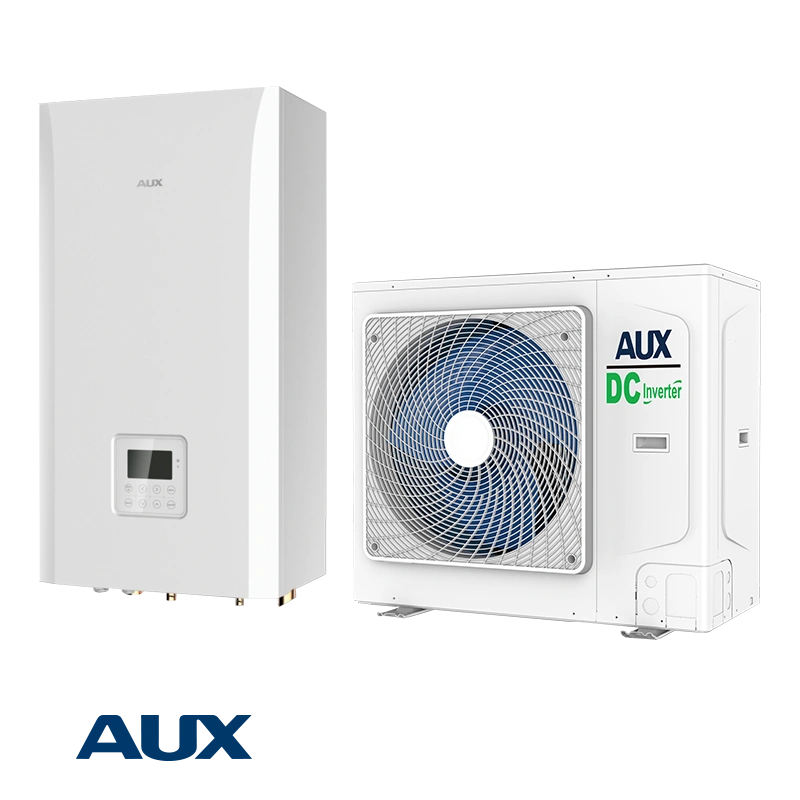

High temperature heat pump AUX ACHP-H16/4R3HA-I - 1-phase

Technical information

• Basic
• Wi-Fi:

  Yes

• Cooling capacity (Min./Nom./Max):

  - / 15 / - kW

• Heating capacity (Min./Nom./Max):

  - / 16.1 / - kW

• Consumption power - cooling (Min./Nom./Max):

  - / 4.41 / - kW

• Consumption power - heating (Min./Nom./Max):

  - / 5.53 / - kW

• Nominal efficiency EER cooling:

  2.46

• COP:

  4.51

• SCOP:

  4.63

• Energy label (Cooling / Heating) - Average climate:

  - / A+++

• Operation Range (Cooling):

  -5 ~ 52 °C

• Operation Range (Heating):

  -25 ~ 35 °C

• Circulating water temperature (cooling):

  5 ~ 25 °C

• Circulating water temperature (heating):

  25 ~ 65 °C

• Warranty:

  36 months

• Refrigerant:

  R-32

• Power supply (Phase/Frequency/Voltage):

  1~/50/220-240

• Indoor unit
• Dimensions:

  790 x 420 x 270 H x W x L (mm)

• Weight:

  39 kg

• Sound Pressure - cooling (High/Nom./Low/Silent):

  31 / - / - / - dB (A)

• Sound Pressure - heating (High/Nom./Low/Silent):

  31 / - / - / - dB (A)

• Outdoor unit
• Compressor type:

  DC Twin Rotary

• Dimensions:

  870 x 1060 x 480 H x W x L (mm)

• Weight:

  100 kg

• Refrigerant piping - Liquid / Gas:

  9.52 / 15.9 mm (3/8" / 5/8") mm / inch

• Sound Pressure - cooling (High/Nom./Low/Silent):

  54 / - / - / - dB (A)

• Sound Pressure - heating (High/Nom./Low/Silent):

  54 / - / - / - dB (A)

• Shipping package - HEAT PUMP AUX ACHP-H16/4R3HB-SI -220V - ВЪТР.
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  79 x 42 x 27; Weight: 45 kg.;

• Shipping package - HEAT PUMP AUX ACHP-H16/4R3HB-SO-220V - ВЪНШ.
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  86 x 42 x 99; Weight: 112 kg.;
