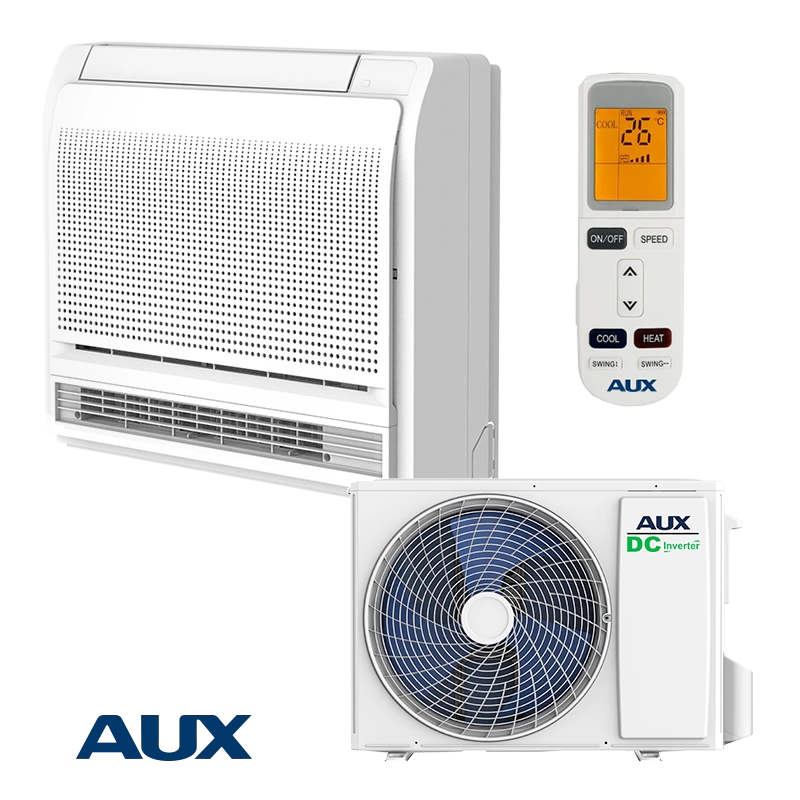

Inverter Air conditioner AUX AUCO-H12/4R3B + AL-H12/NDR3HB2(U) - Floor standing

Technical information

• Basic
• Wi-Fi:

  Yes

• Cooling capacity (Min./Nom./Max):

  1.35 / 3.50 / 4.40 kW

• Heating capacity (Min./Nom./Max):

  1.24 / 3.50 / 5.30 kW

• Consumption power - cooling (Min./Nom./Max):

  0.26 / 1.03 / 1.60 kW

• Consumption power - heating (Min./Nom./Max):

  0.19 / 0.94 / 1.51 kW

• Capacity (BTU):

  12 000 BTU

• Nominal efficiency EER cooling:

  3.4

• Seasonal efficiency SEER cooling:

  6.9

• COP:

  3.72

• SCOP:

  4

• Energy label (Cooling / Heating) - Average climate:

  A++ / A+

• Operation Range (Cooling):

  -15 ~ 52 °C

• Operation Range (Heating):

  -15 ~ 24 °C

• Suitable for rooms up to:

  25 square meters

• Warranty:

  36 months

• Refrigerant:

  R-32

• Power supply (Phase/Frequency/Voltage):

  1~/50/220-240

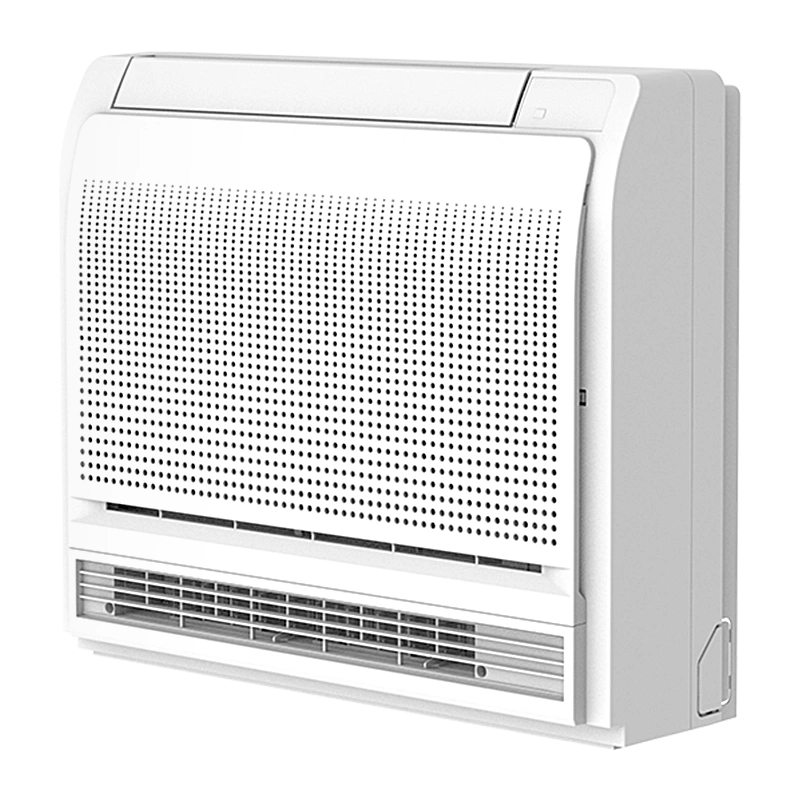

• Indoor unit
• Dimensions:

  600 x 700 x 225 H x W x L (mm)

• Weight:

  15 kg

• Sound Pressure - cooling (High/Nom./Low/Silent):

  42 / 39 / 36 / - dB

• Sound Pressure - heating (High/Nom./Low/Silent):

  42 / 39 / 36 / - dB

• Outdoor unit
• Compressor type:

  Rotary

• Dimensions:

  536 x 709 x 280 H x W x L (mm)

• Weight:

  23 kg

• Refrigerant piping - Liquid / Gas:

  6.35 / 12.7 mm (1/4" / 1/2") mm / inch

• Sound Pressure - cooling (High/Nom./Low/Silent):

  48 / - / - / - dB

• Sound Pressure - heating (High/Nom./Low/Silent):

  48 / - / - / - dB

• Shipping package - AUX AUCO-H12/4R3A FLOOR
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  67.5 x 78 x 30; Weight: 19 kg.;

• Shipping package - AUX AL-H12/NDR3HB2(U) OUTDOOR
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  59.5 x 82.5 x 34.5; Weight: 27 kg.;
