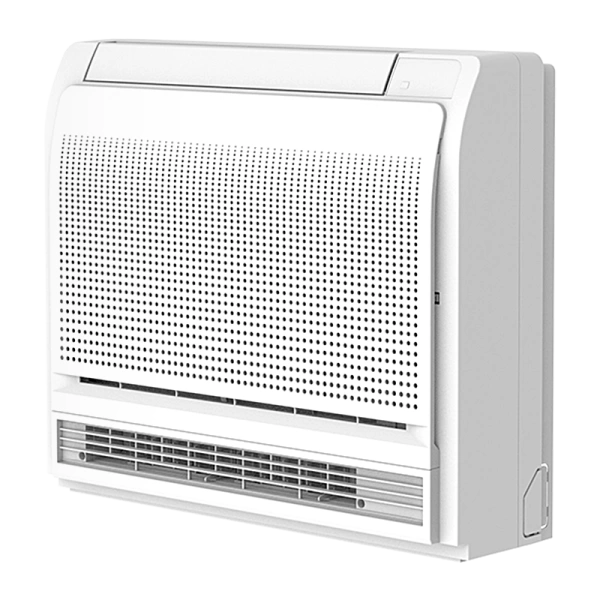

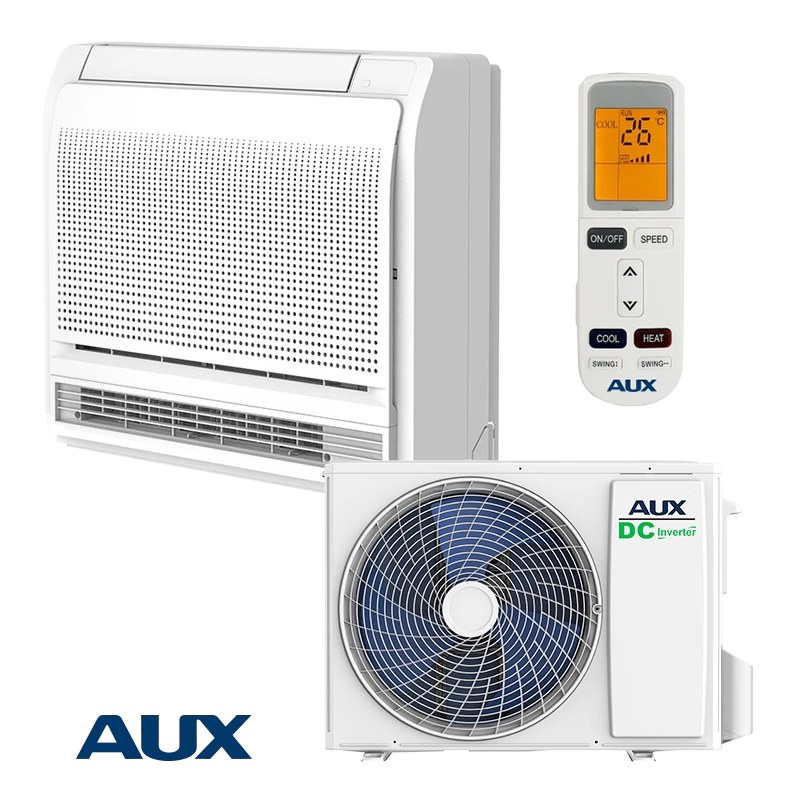

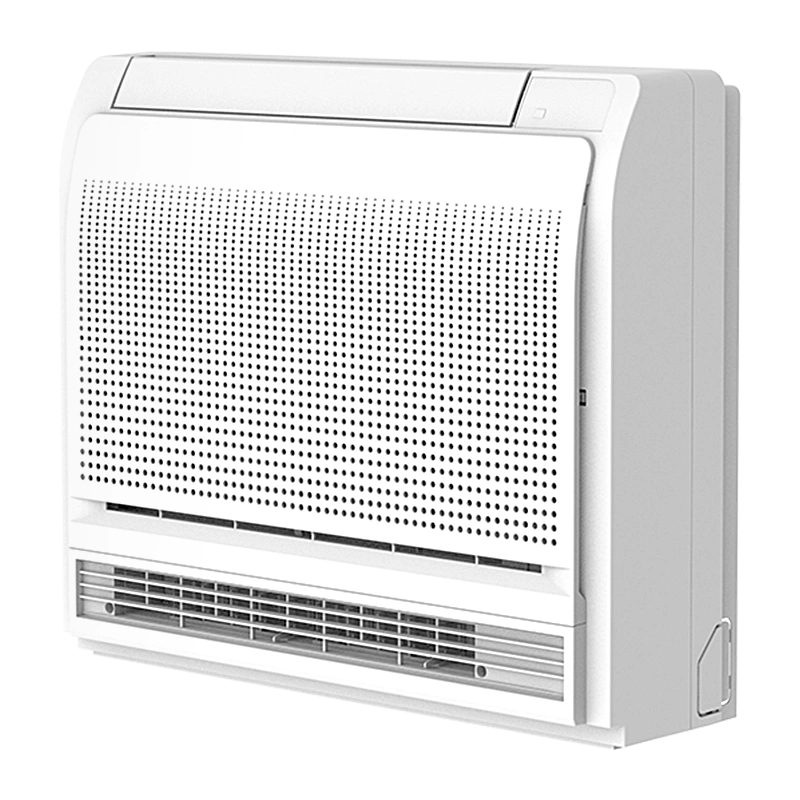

Inverter Air conditioner AUX AUCO-H18/4R3B + AL-H18/NDR3HB2(U) - Floor standing

Technical information

• Basic
• Wi-Fi:

  Yes

• Cooling capacity (Min./Nom./Max):

  1.53 / 5.0 / 5.6 kW

• Heating capacity (Min./Nom./Max):

  1.4 / 5.2 / 6.2 kW

• Consumption power - cooling (Min./Nom./Max):

  0.47 / 1.45 / 2.3 kW

• Consumption power - heating (Min./Nom./Max):

  0.46 / 1.34 / 2.25 kW

• Capacity (BTU):

  18 000 BTU

• Nominal efficiency EER cooling:

  3.24

• Seasonal efficiency SEER cooling:

  6.9

• COP:

  3.73

• SCOP:

  4

• Energy label (Cooling / Heating) - Average climate:

  A++ / A+

• Operation Range (Cooling):

  -15 ~ 52 °C

• Operation Range (Heating):

  -15 ~ 24 °C

• Suitable for rooms up to:

  35 square meters

• Warranty:

  36 months

• Refrigerant:

  R-32

• Power supply (Phase/Frequency/Voltage):

  1~/50/220-240

• Indoor unit
• Dimensions:

  600 x 700 x 225 H x W x L (mm)

• Weight:

  15 kg

• Sound Pressure - cooling (High/Nom./Low/Silent):

  44 / 40 / 37 / - dB (A)

• Sound Pressure - heating (High/Nom./Low/Silent):

  44 / 40 / 37 / - dB (A)

• Outdoor unit
• Compressor type:

  Rotary

• Dimensions:

  555 x 785 x 300 H x W x L (mm)

• Weight:

  29 kg

• Refrigerant piping - Liquid / Gas:

  6.35 / 12.7 mm (1/4" / 1/2") mm / inch

• Sound Pressure - cooling (High/Nom./Low/Silent):

  48 / - / - / - dB (A)

• Sound Pressure - heating (High/Nom./Low/Silent):

  48 / - / - / - dB (A)

• Shipping package - AUX AUCO-H18/4R3A FLOOR INDOOR
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  67.5 x 78 x 30; Weight: 19 kg.;

• Shipping package - AUX AL-H18/NDR3HB2(U) OUTDOOR
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  61.5 x 90 x 38; Weight: 34 kg.;
