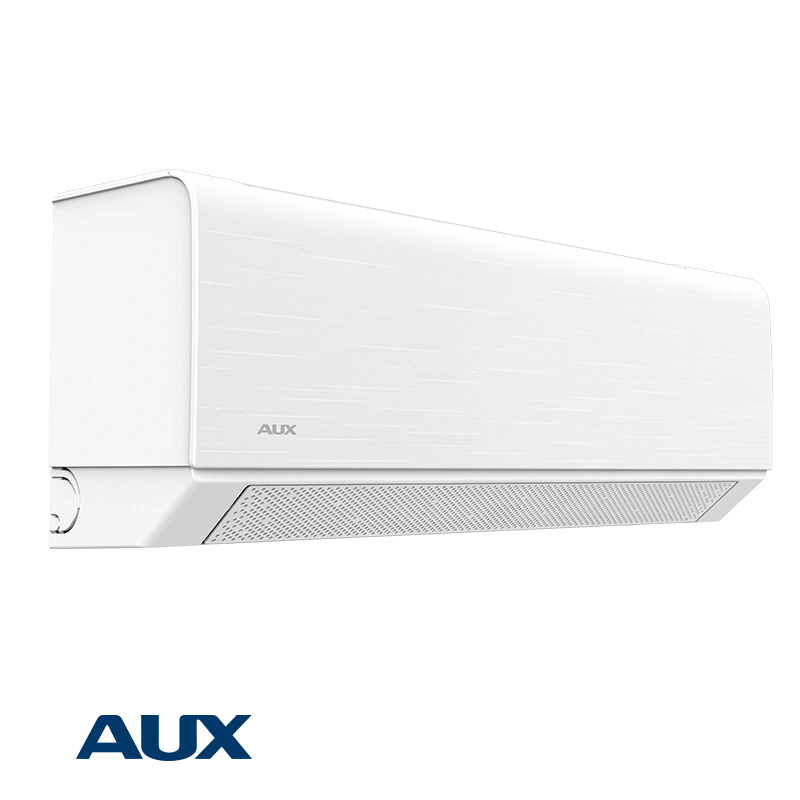

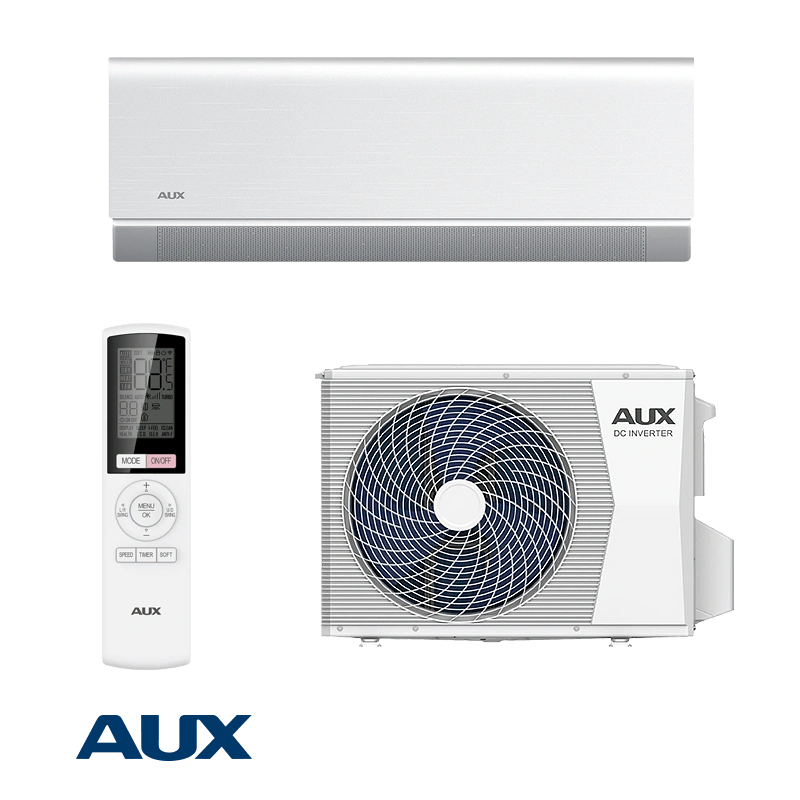

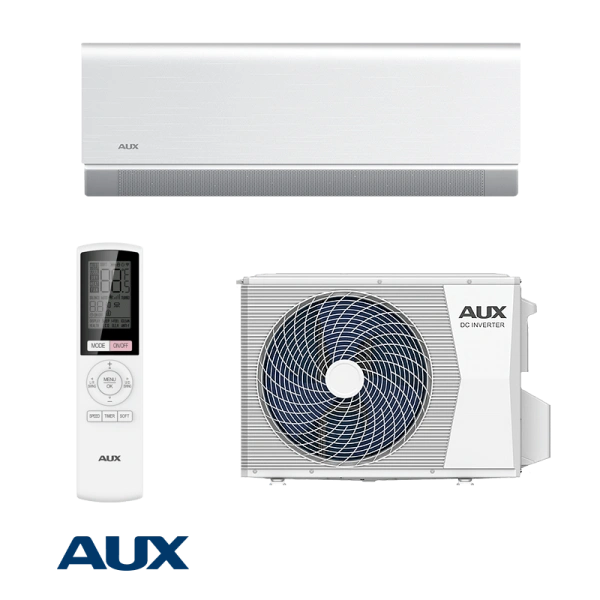

Inverter Air conditioner AUX C Comfort ASW-H09B7A4/CAR3DI-D0

Technical information

• Basic
• Wi-Fi:

  Yes

• Cooling capacity (Min./Nom./Max):

  0.6 / 2.7 / 4.0 kW

• Heating capacity (Min./Nom./Max):

  0.8 / 3.3 / 4.2 kW

• Consumption power - cooling (Min./Nom./Max):

  0.1 / 0.72 / 1.2 kW

• Consumption power - heating (Min./Nom./Max):

  0.2 / 0.8 / 1.2 kW

• Capacity (BTU):

  9000 BTU

• Seasonal efficiency SEER cooling:

  8.5

• SCOP:

  4.6

• Energy label (Cooling / Heating) - Average climate:

  A+++ / A++

• Operation Range (Cooling):

  -15 ~ 46 °C

• Operation Range (Heating):

  -25 ~ 24 °C

• Suitable for rooms up to:

  21 square meters

• Warranty:

  36 months

• Refrigerant:

  R-32

• Power supply (Phase/Frequency/Voltage):

  1~/50/220-240

• Indoor unit
• Dimensions:

  202 x 774 x 299 H x W x L (mm)

• Weight:

  8 kg

• Sound Pressure - cooling (High/Nom./Low/Silent):

  41 / 34 / 31 / 25 dB (A)

• Sound Pressure - heating (High/Nom./Low/Silent):

  41 / 34 / 31 / 25 dB (A)

• Outdoor unit
• Dimensions:

  536 x 709 x 280 H x W x L (mm)

• Weight:

  22.5 kg

• Refrigerant piping - Liquid / Gas:

  6.35 / 9.52 mm (1/4" / 3/8") mm / inch

• Sound Pressure - cooling (High/Nom./Low/Silent):

  51 / - / - / - dB (A)

• Sound Pressure - heating (High/Nom./Low/Silent):

  51 / - / - / - dB (A)

• Shipping package - AUX ASW-H09B7A4/CAR COMFORT - ВЪТР.
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  29 x 90 x 37.1; Weight: 10 kg.;

• Shipping package - AUX AS-H09B7A4/CAR COMFORT - ВЪНШНО
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  60 x 82.5 x 35; Weight: 28 kg.;
