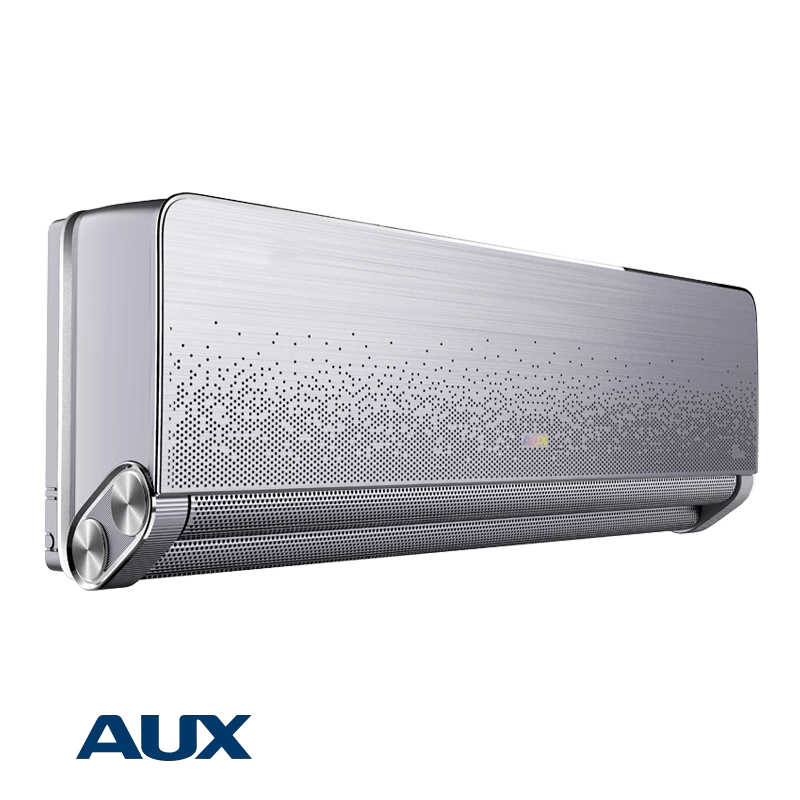

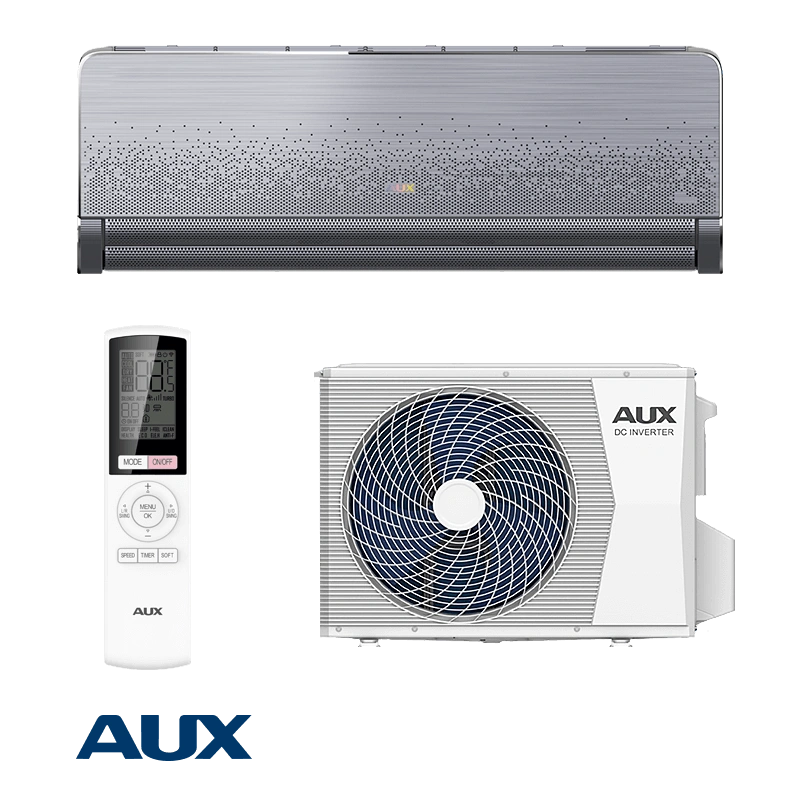

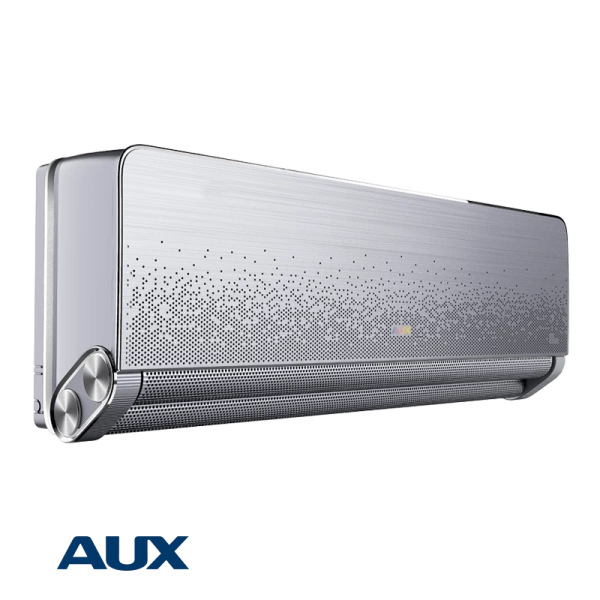

Inverter Air conditioner AUX C-PRO ASW-H09B6A4/FQA800R3DI-D0

Technical information

• Basic
• Wi-Fi:

  Yes

• Cooling capacity (Min./Nom./Max):

  0.6 / 2.75 / 4.0 kW

• Heating capacity (Min./Nom./Max):

  0.8 / 3.4 / 4.2 kW

• Consumption power - cooling (Min./Nom./Max):

  0.1 / 0.64 / 1.2 kW

• Consumption power - heating (Min./Nom./Max):

  0.2 / 0.72 / 1.2 kW

• Capacity (BTU):

  9000 BTU

• Seasonal efficiency SEER cooling:

  8.8

• SCOP:

  4.7

• Energy label (Cooling / Heating) - Average climate:

  A+++ / A++

• Operation Range (Cooling):

  -15 ~ 46 °C

• Operation Range (Heating):

  -25 ~ 30 °C

• Suitable for rooms up to:

  21 square meters

• Warranty:

  36 months

• Refrigerant:

  R-32

• Power supply (Phase/Frequency/Voltage):

  1~/50/220-240

• Indoor unit
• Dimensions:

  212 x 890 x 311 H x W x L (mm)

• Weight:

  9.5 kg

• Sound Pressure - cooling (High/Nom./Low/Silent):

  30 / - / - / 20 dB

• Sound Pressure - heating (High/Nom./Low/Silent):

  30 / - / - / 20 dB

• Outdoor unit
• Compressor type:

  Rotary

• Dimensions:

  530 x 705 x 279 H x W x L (mm)

• Weight:

  24.5 kg

• Refrigerant piping - Liquid / Gas:

  6.35 / 9.52 mm (1/4" / 3/8") mm / inch

• Sound Pressure - cooling (High/Nom./Low/Silent):

  48 / - / - / - dB

• Sound Pressure - heating (High/Nom./Low/Silent):

  48 / - / - / - dB

• Shipping package - AUX ASW-H09B6A4/FQA800R3DI-D0 INDOOR
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  38.2 x 96 x 30; Weight: 12 kg.;

• Shipping package - AUX AS-H09B6A4/FQA800R3DI-D0 OUTDOOR
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  59.5 x 82.5 x 34.5; Weight: 28 kg.;
