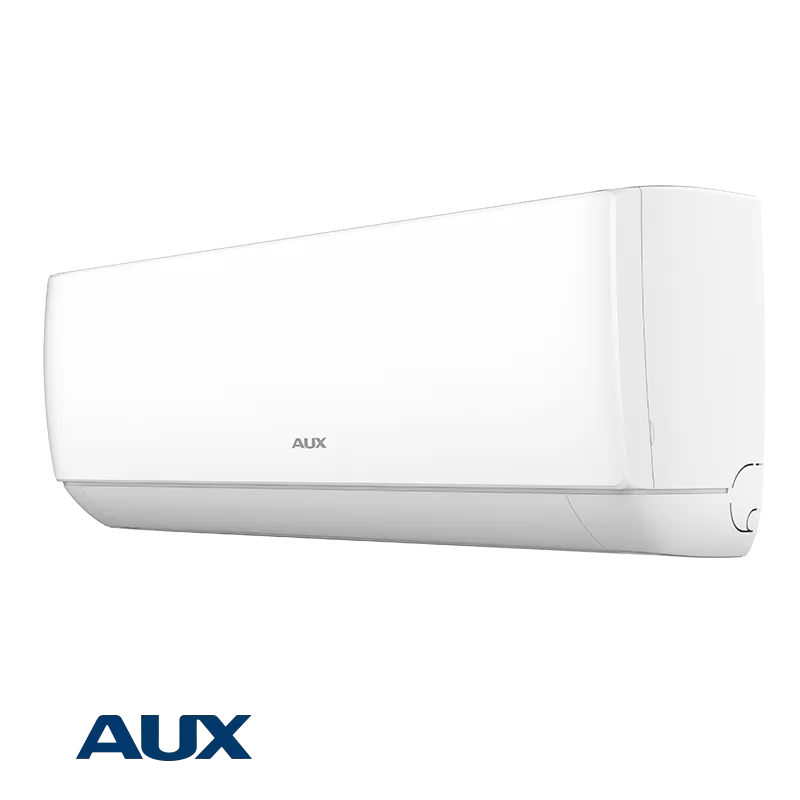

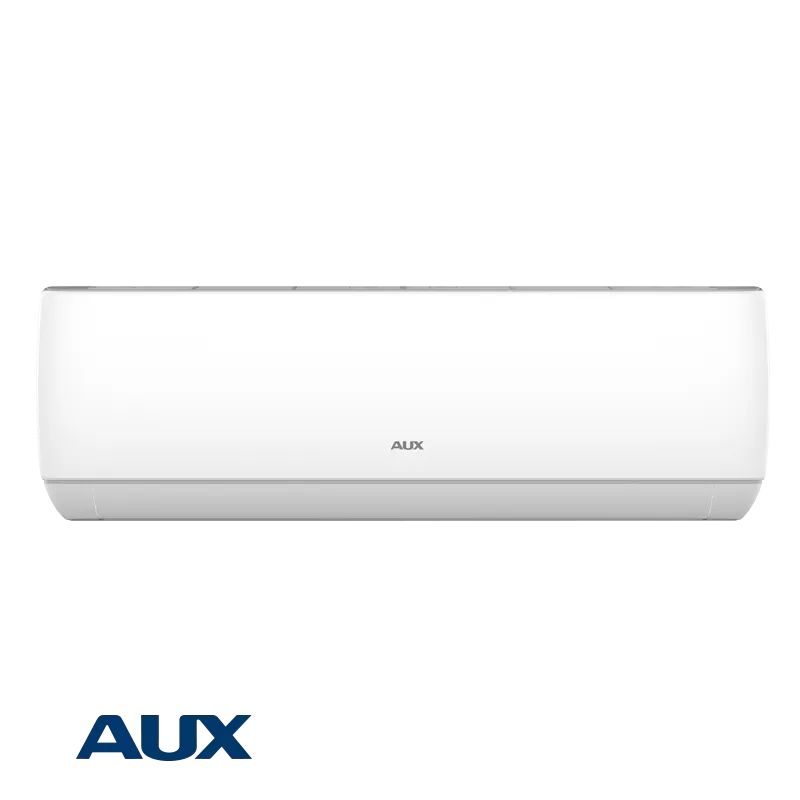

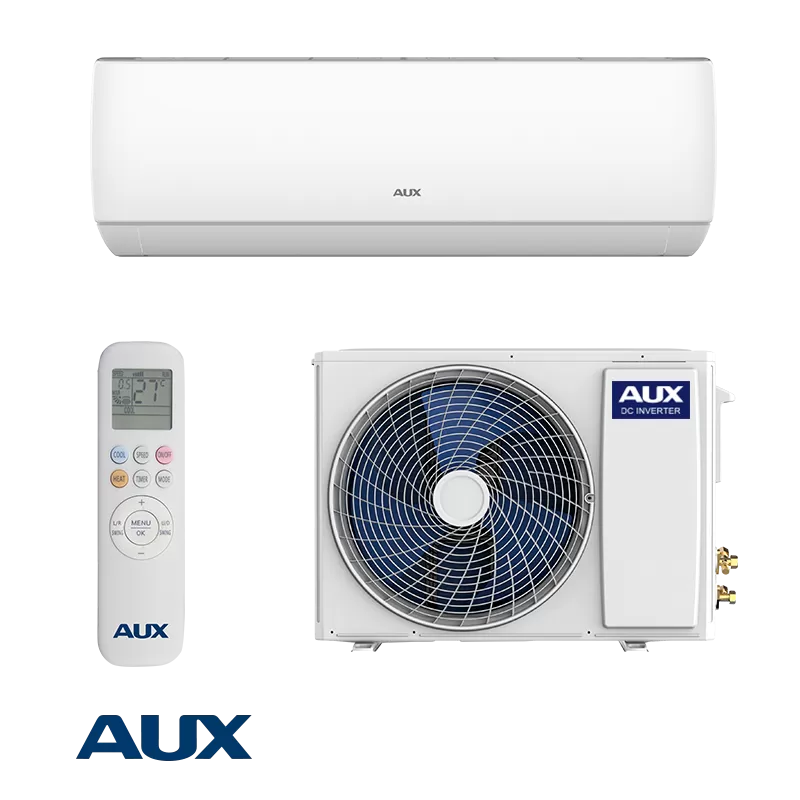

Inverter Air conditioner AUX J-Smart ASW-H12C5C4/JOR3DI-B8

Inverter air conditioner AUX J-Smart ASW-H12C5C4/JOR3DI-B8 provides you comfort at reasonable cost during each season. The stylish design of the indoor unit fits easily in all kinds of interiors. The model is suitable for rooms up to 23 sq.m. with warranty period of 24 months.

490.85 EUR (VAT incl.)

Documents

User documentation
  • Energy label for AUX J-Smart ASW-H12C5C4/JOR3DI-B8_bg Download
  • User and installation manual_bg Download
  • WIFI manual_bg Download
  • User manual for remote control for AUX_bg Download
  • Declaration of conformity for AUX J-Smart ASW-H12C5C4/JOR3DI-B8_bg Download
Service documentation
  • Aux error codes_Сплит Download
  • AUX error codes-Професионални Download
  • AUX error codes-Термопомпи Download

Technical information

  • Basic
  • Wi-Fi:

    Yes

  • Cooling capacity (Min./Nom./Max):

    0.8 / 3.5 / 4.1 kW

  • Heating capacity (Min./Nom./Max):

    1.0 / 3.8 / 4.2 kW

  • Consumption power - cooling (Min./Nom./Max):

    0.1 / 1.18 / 1.6 kW

  • Consumption power - heating (Min./Nom./Max):

    0.3 / 1.10 / 1.6 kW

  • Capacity (BTU):

    12 000 BTU

  • Seasonal efficiency SEER cooling:

    6.9

  • SCOP:

    4.03

  • Annual energy consumption (Cooling/Heating):

    198 / 938 kWh

  • Energy label (Cooling / Heating) - Average climate:

    A++ / A+

  • Operation Range (Cooling):

    -15 ~ 46 °C

  • Operation Range (Heating):

    -20 ~ 30 °C

  • Suitable for rooms up to:

    23 square meters

  • Warranty:

    36 months

  • Refrigerant:

    R-32

  • Power supply (Phase/Frequency/Voltage):

    1~/50/220-240

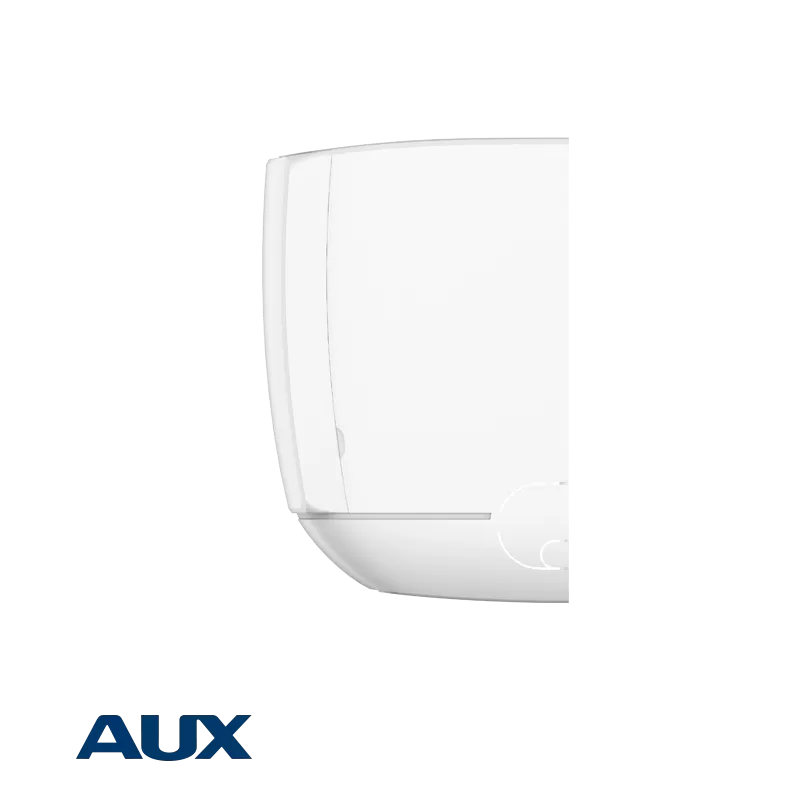

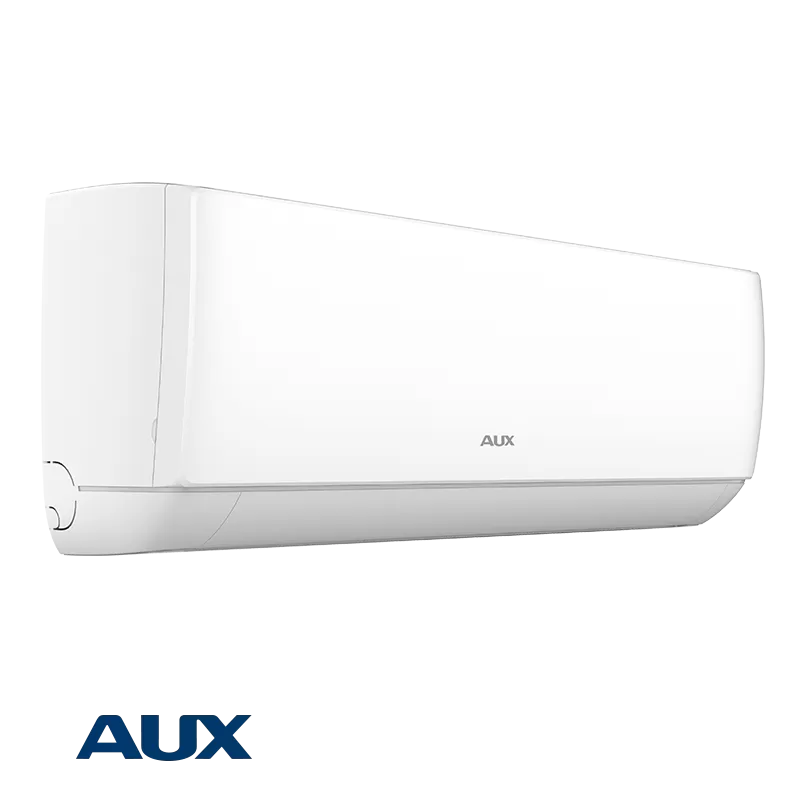

  • Indoor unit
  • Dimensions:

    201 x 761 x 295 H x W x L (mm)

  • Weight:

    8.5 kg

  • Sound Pressure - cooling (High/Nom./Low/Silent):

    43 / 34 / 30 / 27 dB

  • Sound Pressure - heating (High/Nom./Low/Silent):

    43 / 34 / 30 / 27 dB

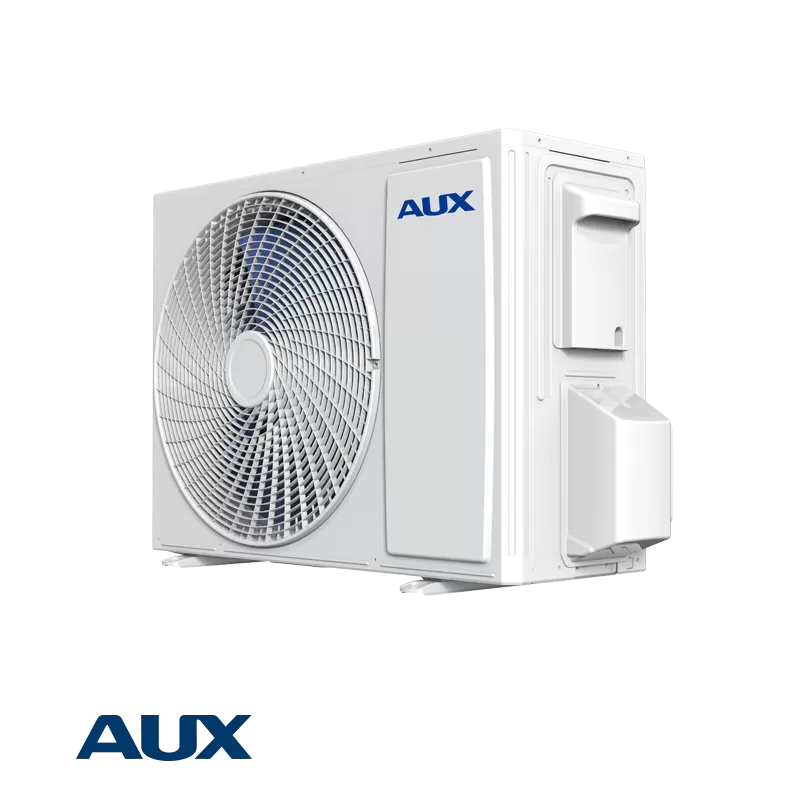

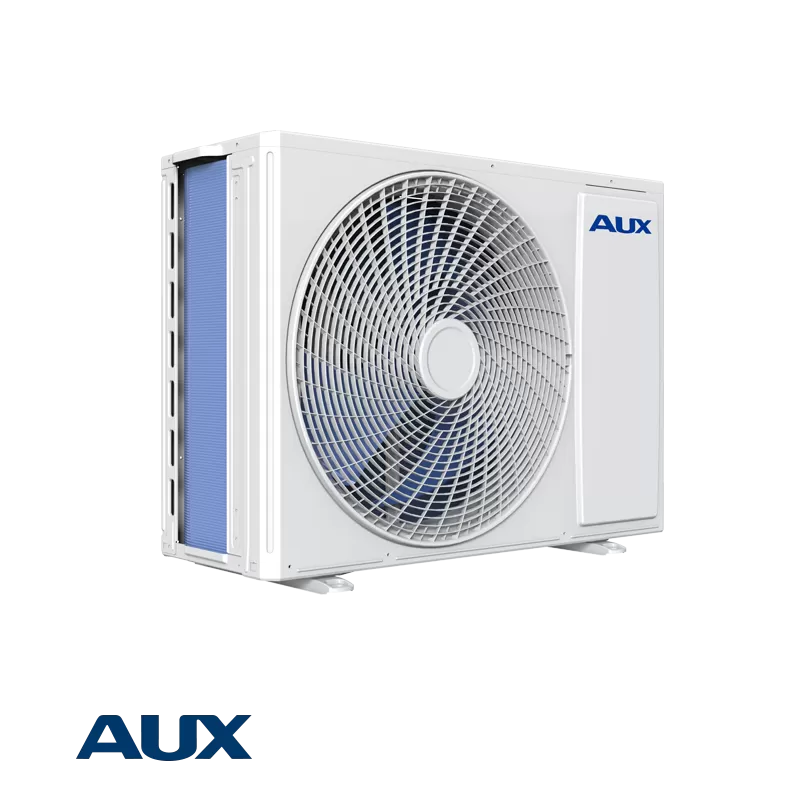

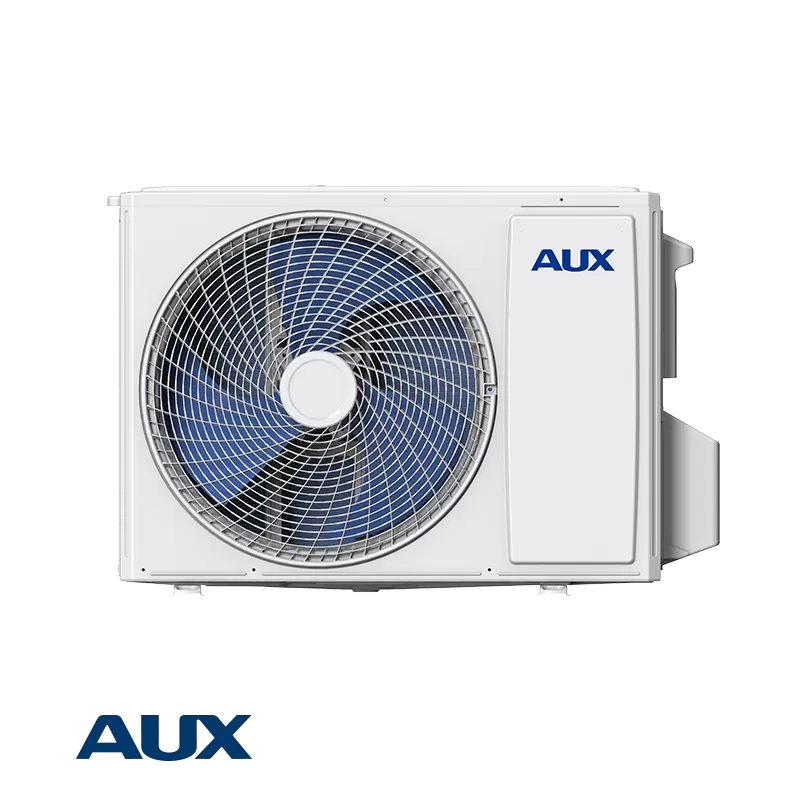

  • Outdoor unit
  • Compressor type:

    Rotary

  • Dimensions:

    530 x 705 x 279 H x W x L (mm)

  • Weight:

    22.5 kg

  • Refrigerant piping - Liquid / Gas:

    6.35 / 9.52 mm (1/4" / 3/8") mm / inch

  • Sound Pressure - cooling (High/Nom./Low/Silent):

    48 / - / - / - dB

  • Sound Pressure - heating (High/Nom./Low/Silent):

    48 / - / - / - dB

  • Shipping package - AUX AS-H12C5C4/JOR3DI-B8 - OUTDOOR
  • Packages quantity:

    1 pc.

  • Package dimensions (HxWxD cm):

    60 x 33 x 83; Weight: 24 kg.;

Details

AUX J-smart inverter type air conditioners

The AUX air conditioners of the J-smart series are the reasonable choice for every home. They combine the advantages of high efficiency and long life of their mechanical parts. The models of this series include specially designed blades to provide smooth and even air blowing. Indoor units have a modern, classical appearance and are conveniently equipped with Wi-Fi control.

<


Plasma filter

The inverter type AUX J-Smart ASW-H12C5C4/JOR3DI-B8 will provide the perfect climate and air quality in your home or office thanks to the built-in plasma filter. Cold plasma has the property to remove dust, neutralize odors and smokes, therefore ensuring cleaner air and healthier environment in the room.


Self-cleaning function

AUX J-Smart air conditioners have self-cleaning function. Thanks to this function the air conditioner can generate a huge temperature difference within a short time – first it will work in cooling mode in order for the condensed water to remove bacteria and dust buildup, then it will switch on to heating mode, and finally only the fan will work to fully remove any residual moisture from the interior parts of the device. This is to prevent mildew and bacteria growing and to ensure 90% sterilization.


Wi-Fi control

For even better convenience the AUX air conditioners of the J-Smart series can be controlled remotely using the Wi-Fi controller, which is included in the package. The only thing you need to do in order to activate it and use it from your smartphone is follow the instructions.


Reliable operation at temperatures below 0°C

The auxiliary preheating system for the outdoor units of J-smart air conditioners makes you rest assured that the heating of your home in the coldest winter nights is guaranteed even when the temperature outside drops to -20 °C.


Vacation mode – maintaining 8 ºС

Enjoy your unforgettable winter vacation, with no worry about your home. While operating in this mode the air conditioner maintains 8 ºС minimum temperature, not allowing your home to over cool, which in its turn will save on the energy and resources needed to reheating it when you return home from vacation.



Sleep mode

By activating this mode, the air conditioner shall stop operating for 10 hours, afterwards it will resume operation in the previous mode.

Self-cleaning

The air conditioner shall automatically clean any dust from the evaporator and dry it out, thus improving its efficiency.

Autorestart

In case of power failure the air conditioner saves the current settings and resumes operation at the same settings when power is restored.

Self-diagnostics

In case of function outside normal operating parameters or defect in a system component, an error code will be displayed to guide the service technicians for easier and faster troubleshooting.

Dual installation

The air conditioner design allows for the pipes to be connected equally well both at the left side and the right side of the indoor unit.

8 ºС constant temperature

The air conditioner shall maintain 8 ºС minimum temperature, not allowing your home to over cool.



PM 2.5 sterilization

Absorbs fine dust up to PM 2.5

Cold plasma

Cold plasma removes dust and neutralizes odors and smokes.

Operation at -20 ºС

The auxiliary preheating system for the outdoor unit makes its operation possible even when the temperature outside drops to -20 °C.
