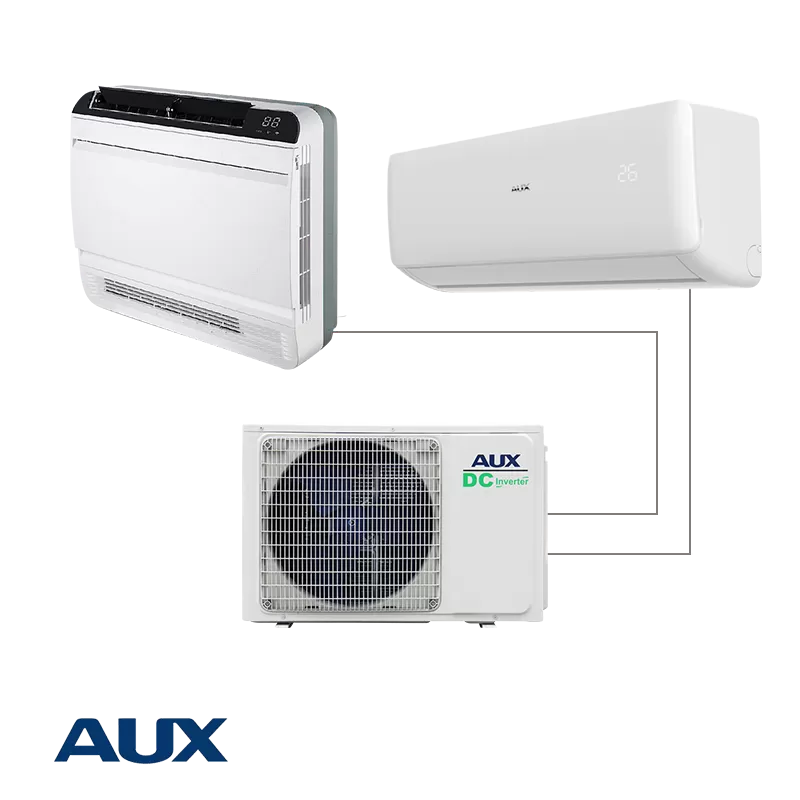

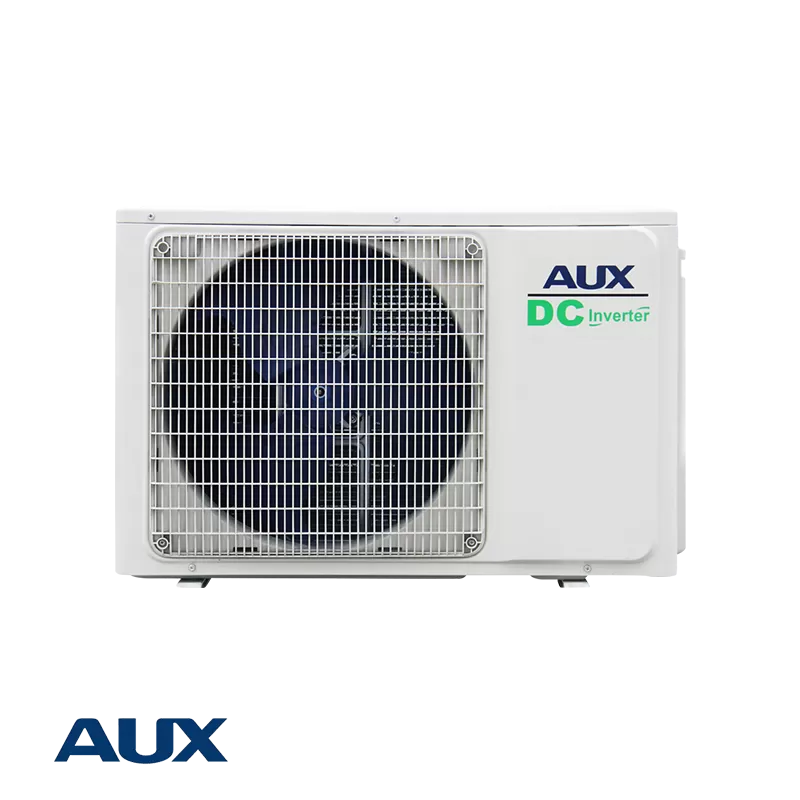

Multi-split system AUX AM2-H18+4DR3S - external unit

Technical information

• Basic
• Cooling capacity (Min./Nom./Max):

  2.0 / 5.3 / 5.83 kW

• Heating capacity (Min./Nom./Max):

  2.21 / 5.6 / 6.16 kW

• Consumption power - cooling (Min./Nom./Max):

  0.3 / 1.75 / 2.3 kW

• Consumption power - heating (Min./Nom./Max):

  0.28 / 1.54 / 2.3 kW

• Capacity (BTU):

  18 000 BTU

• Nominal efficiency EER cooling:

  3.03

• Seasonal efficiency SEER cooling:

  7.07

• COP:

  3.64

• SCOP:

  4.07

• Energy label (Cooling / Heating) - Average climate:

  A++ / A+

• Operation Range (Cooling):

  -15 ~ 52 °C

• Operation Range (Heating):

  -15 ~ 24 °C

• Maximum number indoor units:

  2

• Warranty:

  36 months

• Refrigerant:

  R-32

• Power supply (Phase/Frequency/Voltage):

  1~/50/220-240

• Indoor unit
• Outdoor unit
• Compressor type:

  Rotary

• Dimensions:

  555 x 785 x 300 H x W x L (mm)

• Weight:

  30 kg

• Refrigerant piping - Liquid / Gas:

  6.35 / 9.52 mm (1/4" / 3/8") mm / inch

• Sound Pressure - cooling (High/Nom./Low/Silent):

  55 / - / - / - dB

• Sound Pressure - heating (High/Nom./Low/Silent):

  55 / - / - / - dB

• Shipping package - AUX AM2-H18/4DR3 MULTI OUTDOOR
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  60 x 70 x 40; Weight: 42 kg.;
